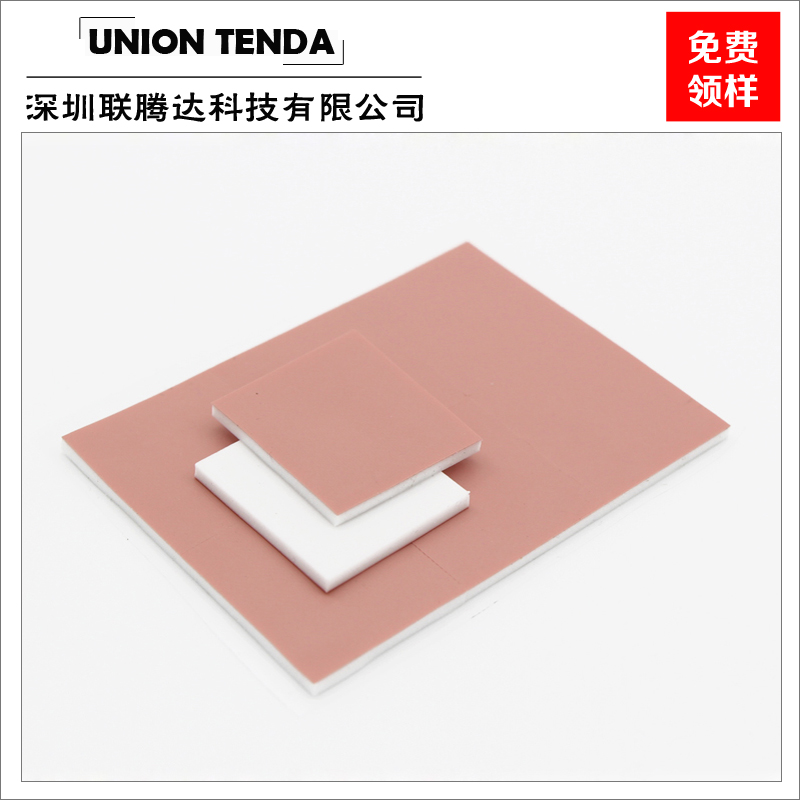

LCP Thermal Pad With Silicone Pad

类型：导热陶瓷片/散热片
规格：200mm×400mm，300mm×400mm；Customized size available;
简介：LCP is a value of the thermal interface material. The material is made on the base of coating thermally conductive polymer on fiberglass silicone tape coated substrate for easy to process and assembly. The softness and high adhesive can be used in filling the air gap between the PC board and the radiator or metal case. And its high adhesive is suitable for low stress shock absorption. Single-sided stickiness and puncture resistance is an electrical insulation material for the use of filling cooling insulation for activities or with the needle irregular heaters. Also it can also be used for thermal conductive between high-voltage bare wire devices and heat sink

服务热线：0755-29082440

免费索样在线咨询

LCP is a value of the thermal interface material. The material is made on the base of coating thermally conductive polymer on fiberglass silicone tape coated substrate for easy to process and assembly. The softness and high adhesive can be used in filling the air gap between the PC board and the radiator or metal case. And its high adhesive is suitable for low stress shock absorption. Single-sided stickiness and puncture resistance is an electrical insulation material for the use of filling cooling insulation for activities or with the needle irregular heaters. Also it can also be used for thermal conductive between high-voltage bare wire devices and heat sink

Features & Benefits:

l Only one side is sticky

l Enhanced anti-puncture, shear and tear resistance

l High fit, low-hardness gap filling material

l Strong electrical insulation

Physical Properties：

Test Item	Test Method	Unit	LCP100 Test Value	LCP150 Test Value
Color	Visual	-	White&Pink	White&Pink
Thickness	ASTM D374	mm	0.5~10	0.5~10
Hardness	ASTM D2240	Shore 00	40~80	40~80
Specific Gravity	ASTM D792	g/cm3	2.1	2.5
Tensile Strength	ASTM D412	Mpa	2.5	2.5
Elongation	ASTM D412	%	-	-
Tear Strength	GBT 529-2008	KN/m	4.2	4.2
Breakdown Voltage	ASTM D149	KV/mm	≥8	≥8
Volume Resistivity	ASTM D257	Ω·cm	1×1013	6×1013
Continuous Use Temp	EN344	℃	-40~150	-40~150
Flame Rating	UL94	-	V-0	V-0
Weight Loss	@150℃240H	%	≤0.5	≤0.5
Dielectric Constant	ASTM D150	@1MHz	5.2	5.7
Thermal Conductivity	ISO 22007-2	W/m·K	1.0	1.5

Test Item	Test Method	Unit	LCP100 Test Value	LCP150 Test Value
Color	Visual	-	White&Pink	White&Pink
Thickness	ASTM D374	mm	0.5~10	0.5~10
Hardness	ASTM D2240	Shore 00	40~80	40~80
Specific Gravity	ASTM D792	g/cm3	2.1	2.5
Tensile Strength	ASTM D412	Mpa	2.5	2.5
Elongation	ASTM D412	%	-	-
Tear Strength	GBT 529-2008	KN/m	4.2	4.2
Breakdown Voltage	ASTM D149	KV/mm	≥8	≥8
Volume Resistivity	ASTM D257	Ω·cm	1×1013	6×1013
Continuous Use Temp	EN344	℃	-40~150	-40~150
Flame Rating	UL94	-	V-0	V-0
Weight Loss	@150℃240H	%	≤0.5	≤0.5
Dielectric Constant	ASTM D150	@1MHz	5.2	5.7
Thermal Conductivity	ISO 22007-2	W/m·K	1.0	1.5
