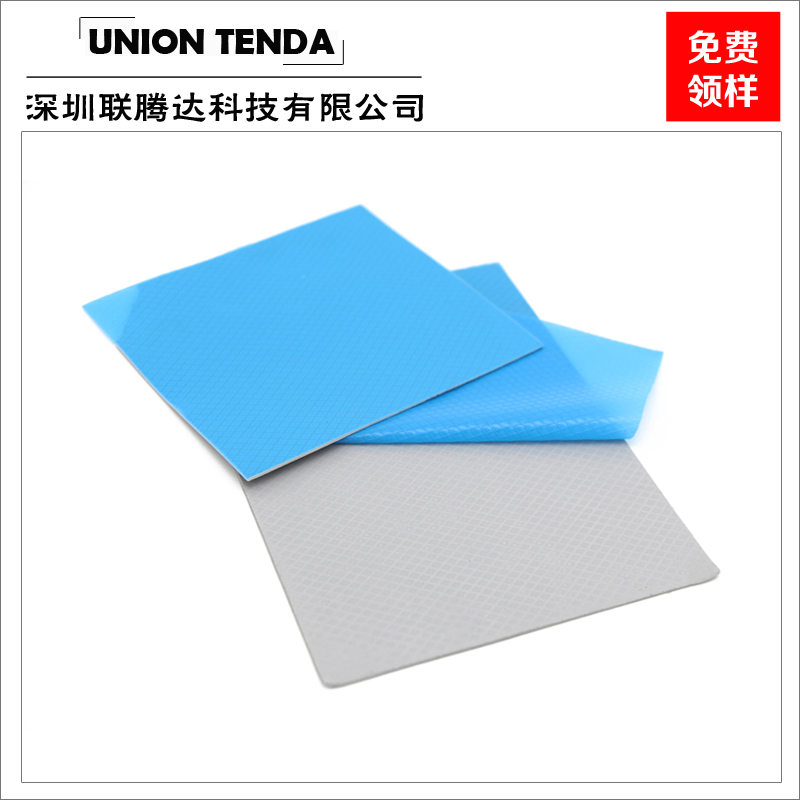

LC Ultra-high Performance Thermal Pad

类型：导热陶瓷片/散热片
规格：200mm×400mm，300mm×400mm；Customized size available;
简介：Ultra-high thermal conductive silicone sheet is a high-performance heat conducting interface material made of 100% imported materials for fillingthe air gaps between the heating device and the heat sink or metal base.Its softness and elasticity characteristics enable it to be used for coveringa very uneven surface. Heat is transferred from the separation device or the entire PCB to the metal casing or diffuser to improve heat dissipationand improve the efficiency of heating electronic components and service life.

服务热线：0755-29082440

免费索样在线咨询

Ultra-high thermal conductive silicone sheet is a high-performance heat conducting interface material made of 100% imported materials for fillingthe air gaps between the heating device and the heat sink or metal base.Its softness and elasticity characteristics enable it to be used for coveringa very uneven surface. Heat is transferred from the separation device or the entire PCB to the metal casing or diffuser to improve heat dissipationand improve the efficiency of heating electronic components and service life

Features & Benefits:

l High thermal conductivity, low thermal resistance

l Soft and flexible, reducing the interface thermal resistance

l High electrical insulation to protect sensitive electronic devices

l Natural sticky, easy assembly, re-workable

l Meet ROHS and UL environmental requirements

Physical Properties：

Test Item	Test Method	Unit	LC500	LC600	LC700	LC800
Color	Visual	-	Gray	Gray	Gray	Gray
Thickness	ASTM D374	mm	0.5~5	0.5~5	1.0~5	1.0~5
Hardness	ASTM D2240	Shore 00	60~80	60~80	60~80	60~80
Specific Gravity	ASTM D792	g/cm3	3.32	3.43	3.5	3.55
Tensile Strength	ASTM D412	Mpa	0.2	0.22	0.15	0.15
Elongation	ASTM D412	%	60	16	24	24
Tear Strength	GBT 529-2008	KN/m	0.5	0.5	0.5	0.5
Breakdown Voltage	ASTM D149	KV/mm	≥7	≥7	≥7	≥7
Volume Resistivity	ASTM D257	Ω·cm	2×1013	2×1013	3×1011	3×1011
Continuous Use Temp	EN344	℃	-40~200	-40~200	-40~200	-40~200
Flame Rating	UL94	-	V-0	V-0	V-0	V-0
Weight Loss	@150℃240H	%	≤0.5	≤0.5	≤0.5	≤0.5
Dielectric Constant	ASTM D150	@1MHz	7.92	7.47	8.0	8.0
Thermal Conductivity	ISO 22007-2	W/m·K	5.0	6.0	7.0	8.0

Test Item	Test Method	Unit	LC500	LC600	LC700	LC800
Color	Visual	-	Gray	Gray	Gray	Gray
Thickness	ASTM D374	mm	0.5~5	0.5~5	1.0~5	1.0~5
Hardness	ASTM D2240	Shore 00	60~80	60~80	60~80	60~80
Specific Gravity	ASTM D792	g/cm3	3.32	3.43	3.5	3.55
Tensile Strength	ASTM D412	Mpa	0.2	0.22	0.15	0.15
Elongation	ASTM D412	%	60	16	24	24
Tear Strength	GBT 529-2008	KN/m	0.5	0.5	0.5	0.5
Breakdown Voltage	ASTM D149	KV/mm	≥7	≥7	≥7	≥7
Volume Resistivity	ASTM D257	Ω·cm	2×1013	2×1013	3×1011	3×1011
Continuous Use Temp	EN344	℃	-40~200	-40~200	-40~200	-40~200
Flame Rating	UL94	-	V-0	V-0	V-0	V-0
Weight Loss	@150℃240H	%	≤0.5	≤0.5	≤0.5	≤0.5
Dielectric Constant	ASTM D150	@1MHz	7.92	7.47	8.0	8.0
Thermal Conductivity	ISO 22007-2	W/m·K	5.0	6.0	7.0	8.0
