LCF Two-part Gap Filler Thermal Conductive Gel

类型：其它导热绝缘材料
规格：50ML/piece, 400ML/piece, 10KG/barrel, large quantity can be customized according to customer requirements
简介：LCF series liquid gap filler is a two-component pre-formed thermal conductive material, which can react and cure under normal temperature or high temperature conditions to form soft and excellent thermal conductivity elastomer. It is shaped according to the shape of the structure and is equal to thermal silicone pad after curing completely. Mainly meets the requirements of low pressure and high compression modulus; Can realize automatic dispensing production with high efficiency; Good contact with electronics when assembled, maximize effective contact area and reduce the contact thermal resistance; Automatically fill the gap available, and the infinite compression feature is suitable for the heat dissipation modules or electronic components with large thickness variation.

服务热线：0755-29082440

免费索样在线咨询

LCF series liquid gap filler is a two-component pre-formed thermal conductive material, which can react and cure under normal temperature or high temperature conditions to form soft and excellent thermal conductivity elastomer. It is shaped according to the shape of the structure and is equal to thermal silicone pad after curing completely. Mainly meets the requirements of low pressure and high compression modulus; Can realize automatic dispensing production with high efficiency; Good contact with electronics when assembled, maximize effective contact area and reduce the contact thermal resistance; Automatically fill the gap available, and the infinite compression feature is suitable for the heat dissipation modules or electronic components with large thickness variation.

Features & Benefits:

l High thermal conductivity, low thermal resistance, excellent wettability

l Low pressure to electronic components

l Manageable raw material stock ,lower composite cost

l For vehicle electronic products

l Can fill any uneven gaps

l Automatic point dispensing available, any thickness or size available

l High reliability, thermal conductive gel is equal to thermal conductive silicon pad after curing, no volatility.

l Unlike adhesive glue, thermal conductive gel has weak adhesion and cannot fix the heat dissipation devices

Physical Properties：

Typical Characteristics	Unit	LCF200	LCF300	LCF380	LCF500	Test Method
Color of A	-	White				Visual
Color of B	-	Blue	Offwhite	Pink	Gray	Visual
Adhesion of A	cps	500000	600000	800000	1000000	ASTM D374
Adhesion of B	cps	500000	600000	800000	1000000	ASTM D374
Mixing ratio	-	1:1				-
Hardness	Shore 00	45±5	45±5	45±5	45±5	ASTM D2240
Density	g/cc	2.5	3.0	3.3	3.5	ASTM D792
Thermal Conductivity	W/m·K	2.0	3.0	3.8	5.0	ISO 22007-2
Dielectric Constant	@1MHZ	6.59	7.08	7.08	7	ASTM D150
Breakdown Voltage	KV/mm	≥7.0	≥7.0	≥8.0	≥8.0	ASTM D149
Volume Resistivity	Ω·cm	1.0×1013				ASTM D257
Continue use Temp	℃	-40~200				EN344
Weight Loss	%	≤0.1				@150℃240H
Flammability	-	V-0				UL 94

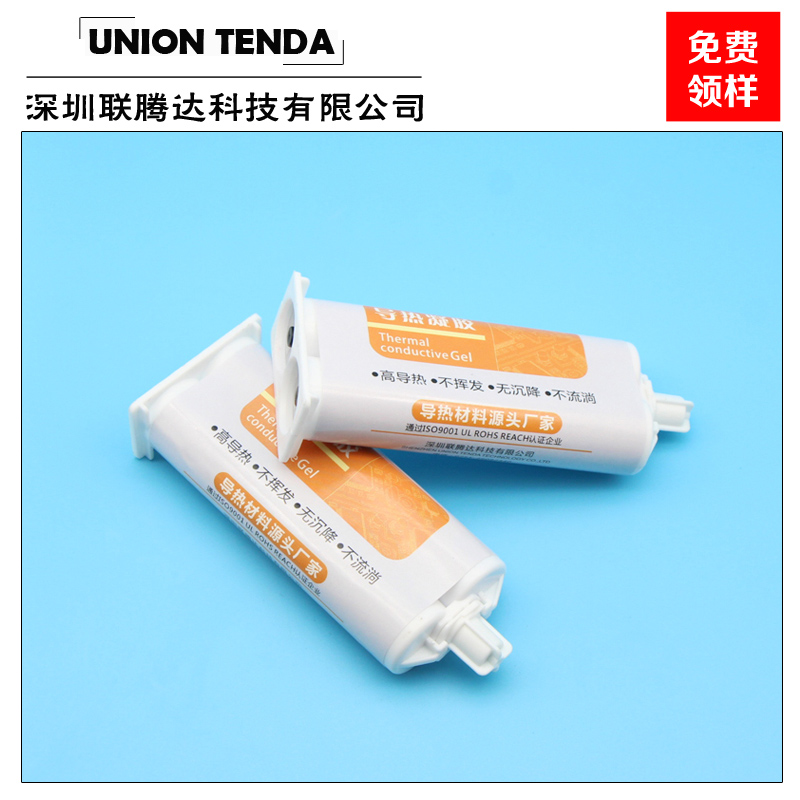

Packing instructions: two types: manual operation type and dispensing type packaging. 1.Manual operation type is generally divided into50ML AB hose packaging (A/B each 25ML), suitable for one-hand operation; The dispensing gap filler packed in 400ML AB hose, it can also bepacked with A 10KG/barrel and B 10KG/barrel according to the dispenser.

Application process: Dispensing :Syringe match up mixed needle, starting from A contacts B in the mixing head, the gel will change as below: after 5 minutes will appear higher viscosity, dry out in 10 minutes, the product will gradually, hardening but also be flexible within 3 hours, showing as hardness rises to no longer change

Typical Characteristics	Unit	LCF200	LCF300	LCF380	LCF500	Test Method
Color of A	-	White				Visual
Color of B	-	Blue	Offwhite	Pink	Gray	Visual
Adhesion of A	cps	500000	600000	800000	1000000	ASTM D374
Adhesion of B	cps	500000	600000	800000	1000000	ASTM D374
Mixing ratio	-	1:1				-
Hardness	Shore 00	45±5	45±5	45±5	45±5	ASTM D2240
Density	g/cc	2.5	3.0	3.3	3.5	ASTM D792
Thermal Conductivity	W/m·K	2.0	3.0	3.8	5.0	ISO 22007-2
Dielectric Constant	@1MHZ	6.59	7.08	7.08	7	ASTM D150
Breakdown Voltage	KV/mm	≥7.0	≥7.0	≥8.0	≥8.0	ASTM D149
Volume Resistivity	Ω·cm	1.0×1013				ASTM D257
Continue use Temp	℃	-40~200				EN344
Weight Loss	%	≤0.1				@150℃240H
Flammability	-	V-0				UL 94
